Scantech
AM-DESK
Versatility and Efficiency Beyond Automation

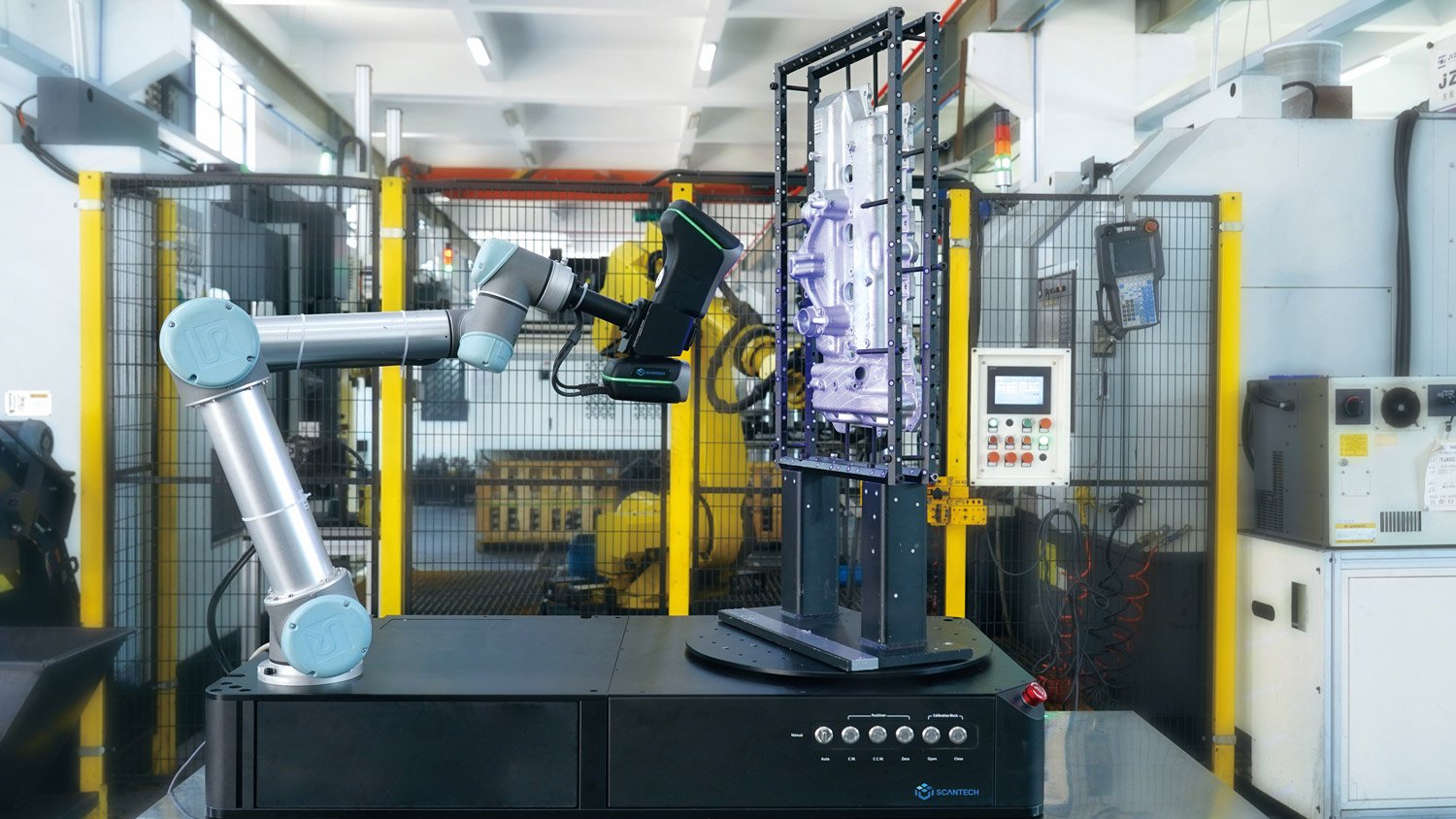

The AM-DESK is an automated 3D measurement station featuring an intelligent control system, multiple servo mechanisms, a safety system, motion control, and advanced measurement and analysis software, including SPC batch analysis. Its compact design and easy installation provide exceptional flexibility to meet a wide range of needs.
Compatible with various collaborative robots and Scantech’s full range of 3D scanners, the AM-DESK can automate the measurement of multiple parts. It is ideal for on-site inspections, lab environments, and harsh conditions, ensuring precise and continuous 3D measurement.
Features & Benefits
Advanced Features for Seamless and Safe 3D Measurement
Designed to meet CE certification standards, the AM-DESK ensures operator safety with comprehensive protection measures. Equipped with versatile accessories, it delivers seamless, automated, and uninterrupted 3D measurement for even the most complex parts.
The station is powered by FlexScan, an intuitive 3D software with a user-friendly interface that enables smooth human-machine interaction. With advanced communication capabilities, it integrates seamlessly with collaborative robots and supports automated measurement across multiple positions and scenarios.
Safety Guard
Quick Installation with Plug-and-Play Setup
One-Button Start for Simplified Operation
Diverse Accessories for Versatile Applications
Easy Programming and Automated Calibration
Manual Operation Options Supported
-
![]()
Robust Performance
The AM-DESK streamlines 3D inspections in labs and on shop floors, handling parts up to 100 kilograms with speed and precision. It automates reporting by comparing 3D coordinates with CAD data, boosting efficiency and accuracy.
-
![]()
Easy Programming and Automated Calibration

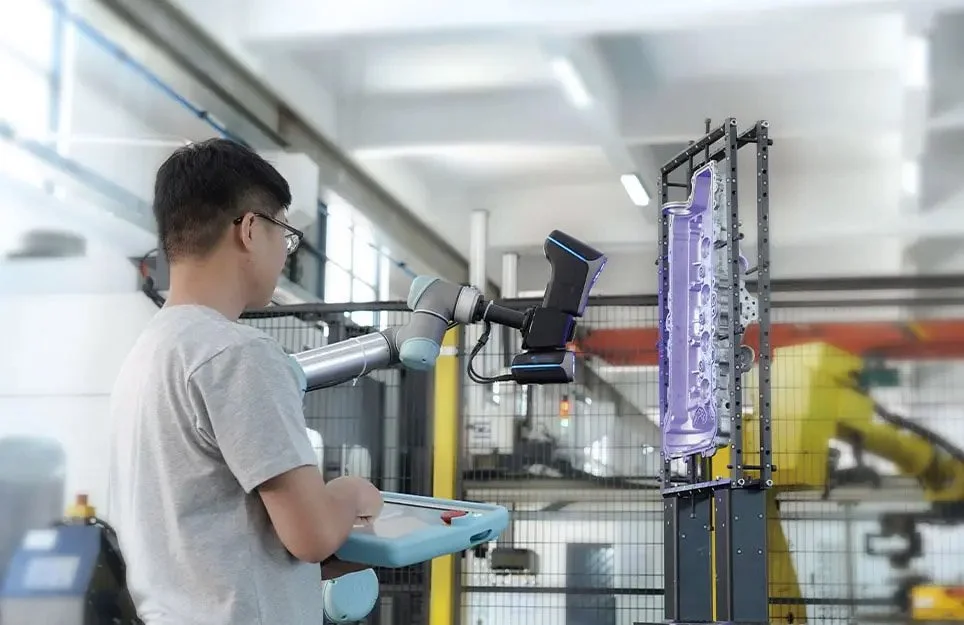

Powered by a PLC and servo-mechanism system, the AM-DESK enables automated measurements with collaborative robots, following preset paths at the click of a button. Its intuitive design ensures easy operation for users of all skill levels.
The station also performs automatic sensor calibration, ensuring precise, uninterrupted measurements.
-
![]()
Edge Computing & Impressive Performance
The AM-DESK is CE-certified, adhering to EU safety, health, and environmental standards. It employs robust safety measures, including an emergency stop system, audible and visual danger alerts, and servo-mechanism-controlled force distance for secure operation.
When paired with collaborative robots (cobots)*, it offers advanced safety features such as 10-grade collision detection and sensor-based hazard detection, automatically halting operations in response to abnormal conditions.
*Cobots are designed to work safely alongside humans without the need for cages, making them ideal for modern workplaces.
Versatile Accessories for Enhanced Flexibility
Weighing just 75 kg and occupying only one square meter, the AM-DESK offers a compact design that sets up in just 5 minutes with standard 110-220V mains power. Mounted on a mobile cart, it’s easily portable for quick relocation. It integrates seamlessly with plug-and-play positioners* to expand the workspace and adapts instantly to new measurement paths, accelerating the process. Additionally, it supports various cobots and works with Scantech’s full range of 3D scanners for maximum versatility.
*Note: AM-DESK Lite does not support multiple positioner connections.
Technical Specifications
| Feature | AM-DESK 60120 | AM-DESK Lite |
|---|---|---|
| Type | AM-DESK 60120 | AM-DESK Lite |
| Dimension | 1200*600*177 mm (47.2 × 23.6 × 7.0 in) | 1200*600*180 mm (47.2 × 23.6 × 7.1 in) |
| Weight | 75 KG (165.3 lb) | 70 KG (154.3 lb) |
| Turntable Payload | ≤ 140 KG (308.6 lb) | ≤ 75 KG (165.3 lb) |
| Max Rotational Speed of Turntable | 50°/S | 40°/S |
| Communication Interface | TCP/IP | TCP/IP |
| Robot Supported | UR5, AUBO i5, JAKA ZU5, Han’s E05-L, ELITE CS66/EC66/EA66, EFORT ECR5, FAIR FR5 | UR5, AUBO i5, JAKA ZU5, Han’s E05-L, ELITE CS66/EC66/EA66, EFORT ECR5, FAIR FR5 |
| Power Supply | 110V~220 V/50~60 Hz | 220 VAC/50-60 Hz |
| Peak Power | 900 W | 700 W |
