Understanding Finite Element Analysis (FEA) and Its Importance in Mechanical Engineering
At My Engineering, engineers certified in the use of FEA for pressure vessel applications can save you time and money. We can help you with your Fitness For Service (FFS) and your hot taps!
What is Finite Element Analysis (FEA)?
Finite Element Analysis (FEA) is a computerized method used to predict how a product or material reacts to external forces, heat, vibrations, and other physical effects. The process involves breaking down a large, complex structure into smaller, manageable pieces (called finite elements). By applying physics-based equations, engineers can analyze how these individual elements will respond under specific conditions and then aggregate the results to understand the behavior of the entire system.
Think of it like dissecting a complicated puzzle. If you want to understand how a car frame will bend under heavy load or how a bridge might deform under stress, FEA divides the structure into many small sections, allowing for detailed examination of each part.

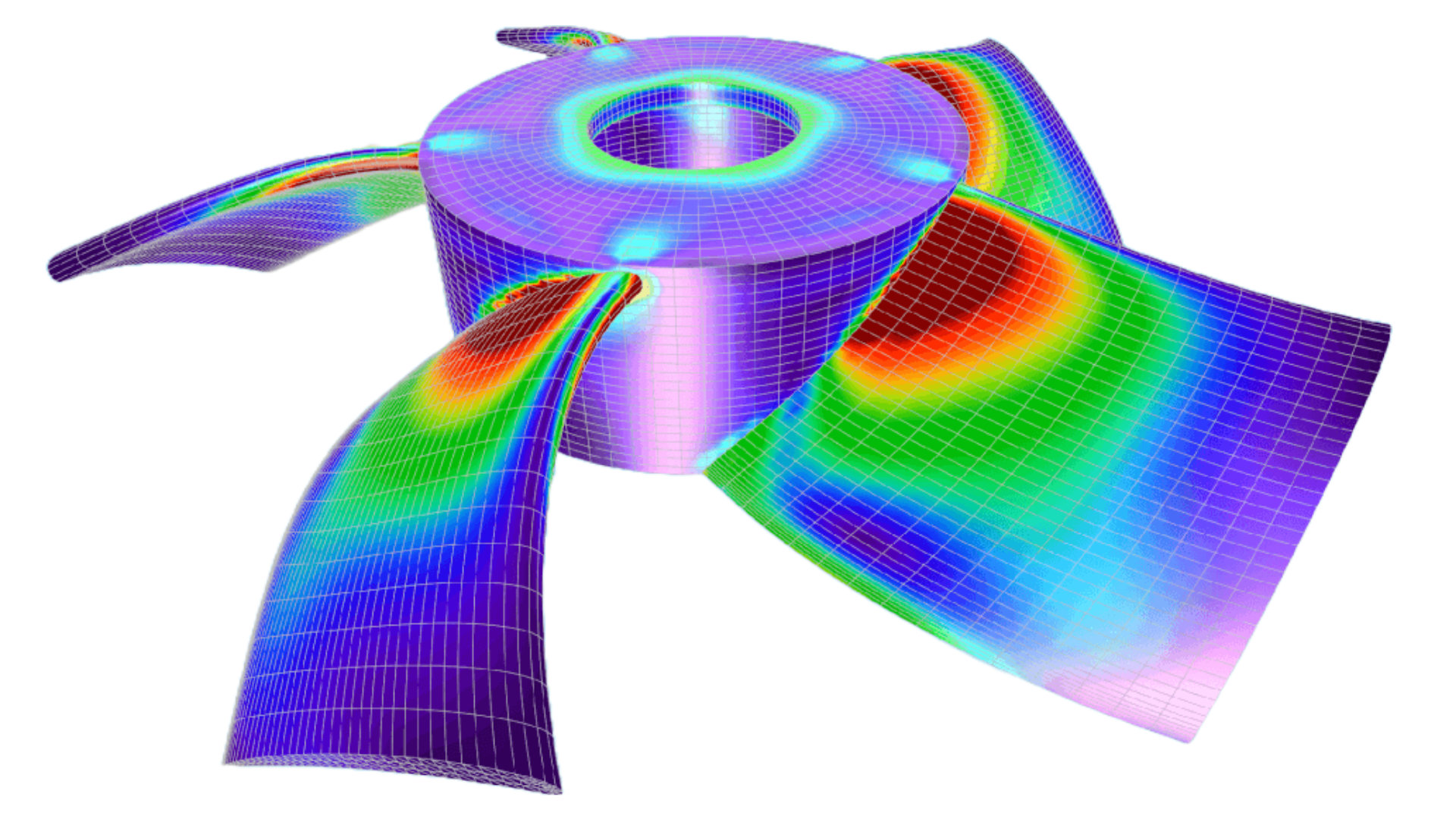

Figure 1: FEA Results of Fan Blade Analysis - Source: MISUMI Mech Lab Blog
Key Steps in FEA:
Modeling the Structure: The engineer creates a digital 3D model of the object to be analyzed. At My Engineering, we take pride in our advanced 3D scanning processing to produce millimeter-accurate models.
Meshing: The structure is divided into small elements (like tiny building blocks).
Applying Loads and Constraints: Forces, pressures, temperatures, and other external conditions are applied to the model.
Solving Mathematical Equations: Computer algorithms calculate the behavior of each element.
Analyzing Results: Engineers interpret the output to predict stresses, deformations, and potential failures.
Why Do Mechanical Engineers Use FEA?
Mechanical engineers turn to FEA because real-world structures and materials often behave in complex ways that are difficult to predict using traditional analytical methods. Here are the key reasons why FEA has become a staple in the field:
Figure 2: Meshing, Load and Constraints on a generic pressure vessel model. Source
1. Enhanced Safety and Reliability
One of the primary goals of any design process is to ensure that the final product is safe for use. For our engineers, when designing a pressure enclosure, we must predict how it will deform under various operating conditions. FEA enables us to identify areas of high stress, where potential failure may occur, long before a physical enclosure is built.
2. Cost and Time Efficiency
In our leak-sealing industry, analytical equations are used for sizing wall thicknesses. These are usually conservative and so, on large enclosures where weight and manufacturing costs start to dominate, more precise designs may be required. By simulating loading conditions through FEA, our engineers can save money for our customers on critical jobs.
3. Ability to Simulate Real-World Scenarios
FEA allows our engineers to simulate conditions that may be difficult or dangerous to replicate in real life, such as extreme temperatures, high pressures, or complex material interactions. For example, our engineers can test pressure vessels to their absolute limit without ever being at risk of reaching that limit in a real test.
4. Design Optimization
FEA not only identifies weaknesses in a design but also helps improve it. Engineers can experiment with different materials, shapes, or reinforcements to optimize performance. This is especially important in industries like aerospace and automotive, where reducing weight without compromising strength is critical.
5. Material Behavior Prediction
Many materials, such as metals, plastics, and composites, behave differently under various loads. FEA helps predict how materials will stretch, compress, or fracture, allowing engineers to make informed material choices based on the demands of the project.
Challenges and Limitations of FEA
While FEA offers numerous benefits, it’s not without its challenges. Understanding these limitations is crucial for effective application:
1. Accuracy of Results Depends on Input Quality
FEA simulations are only as good as the data provided. If the material properties, boundary conditions, or loads are not accurately defined, the results may be misleading. Engineers must ensure that the inputs reflect real-world conditions as closely as possible.
2. Complexity of the Process
Setting up an FEA model requires expertise in both engineering principles and simulation software. Improper meshing, incorrect assumptions, or poor model setup can lead to errors.
3. Computational Intensity
FEA simulations can be computationally expensive, especially for large or highly detailed models. Analyzing a car crash scenario, for example, can require powerful computers and significant processing time. Additionally, larger meshes with smaller elements may be necessary to achieve more accurate results.
Figure 3: Results of FEA study on a weld on hot tap fitting. Designed and engineered at MY Engineering Ltd.
4. Simplifications and Assumptions
To make simulations feasible, engineers often simplify models by neglecting small features or assuming ideal conditions. While this helps speed up computations, it can sometimes lead to discrepancies between the simulation and real-world behavior.
Applications of FEA in Mechanical Engineering
Mechanical Engineers in various industries have historically used FEA to: Automotive: Simulating crash tests, optimizing chassis design, and reducing vehicle weight while maintaining safety.
Aerospace: Evaluating wing structures, fuselage integrity, and thermal performance of spacecraft components.
Civil Engineering: Analyzing the structural integrity of bridges, buildings, and tunnels under different load conditions.
Medical Devices: Designing prosthetics, implants, and surgical instruments with optimal strength and biocompatibility.
Energy: Evaluating wind turbine blades, pressure vessels, and pipelines for durability and performance.
Conclusion
Finite Element Analysis is a powerful and essential modern tool for mechanical engineers, providing insights that would be nearly impossible to achieve through physical testing alone. By using this tool, our certified engineers design safer, more efficient, and cost-effective leak-sealing
Looking for information about Fitness for Service? Check out our Services: API 579-1 / ASME FFS-1 Fitness for Service
