Artec Micro II 3D Scanner
Advanced Desktop 3D Scanner for High-Precision Part Digitization
The Artec Micro II delivers enhanced accuracy, an expanded field of view, and maintains its compact design, improving upon its predecessor. This fully automated desktop 3D scanner simplifies professional reverse engineering and quality inspection processes. With just the push of a button, the Micro II captures small objects with a remarkable 5-micron precision, producing detailed, full-color 3D models of industrial components and dental items. Additionally, it can be paired with photogrammetry data for an elevated level of hyper-realistic scanning, all from the convenience of your desktop.
Features & Benefits
-
![]()
1-click workflow
Present your object and let your Micro II 3D scanner do the rest.
-
![]()
For objects up to 20 cm in size
Digitize a wide size range of objects: from tiny items that you can hold between two fingers up to those that sit in the palm of your hand (20 x 20 x 15 cm).
-
![]()
5-micron accuracy
Capture every detail of your object with astounding accuracy.
-
![]()
2-micron repeatability
Consistently get the same results every time.
-
![]()
4 x 13 MPX cameras to capture every detail
The Micro II is equipped with four high-resolution cameras, and is capable of scanning sharp edges and miniscule details - just what you need for the 3D scanning of small objects.
-
![]()
Deep view
Get deeper into the nooks of your object with the scanner's quad-cam scanning technique: four specially positioned 13 MPX cameras to capture hard-to-see areas for high-level digitization.
-
![]()
Full color

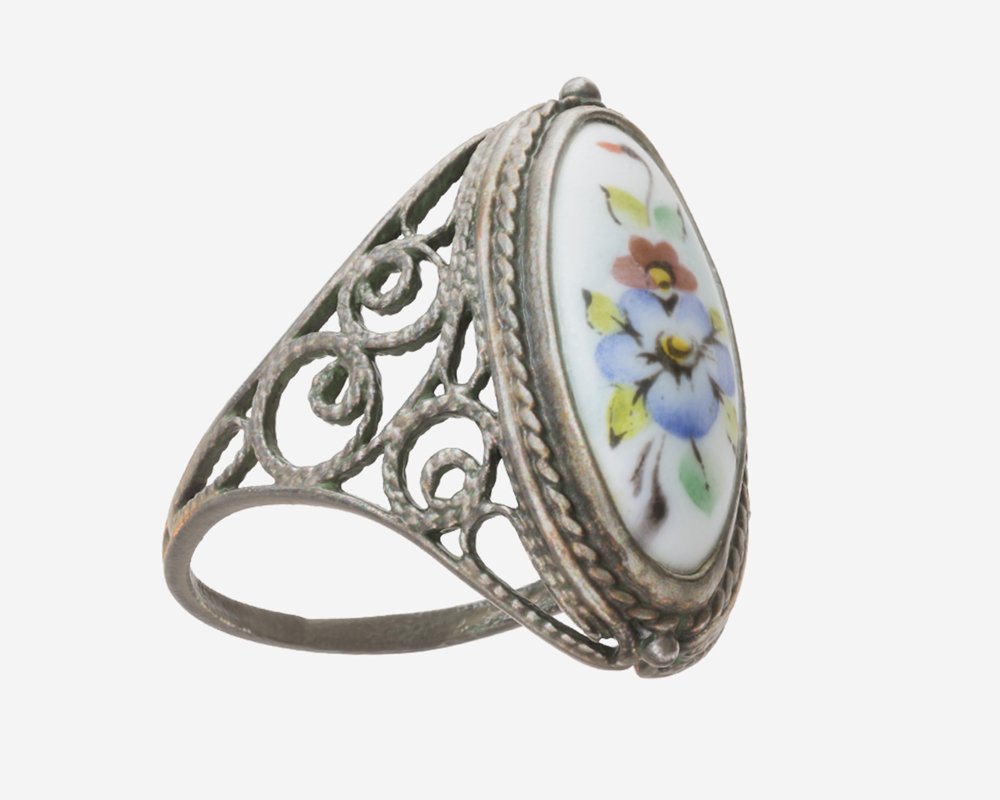

Scan your objects in full color with Micro II. For hyper-realistic 3D models, add color from high-res photos using Artec Studio's photo-texturing feature.
-
![]()
Inspect and reverse engineer right in Artec Studio
Once your 3D scan data is captured, you can quickly and easily inspect and reverse engineer right in AS.
-
![]()
Scan-to-CAD export
Export directly to SOLIDWORKS or Geomagic Design X - or for inspection, directly to Control X for in-depth reports.
-
![]()
Applications
Suitable for reverse engineering of small parts, quality inspection, forensics, jewelry, heritage preservation, and dentistry.
Technical Specifications
| Description | Spec |
|---|---|
| 3D point accurage | 5 microns, 2 micro repeatability |
| Accuracy certification | ISO12836 |
| Volume capture | 6000 cm3 (18.5 times larger than Micro I) |
| Field of view | 20 x 20 x 15 cm |
| Scan system | 3-axis |
| Cameras | 4 x 13 MP resolution cameras |
| 3D resolution | TBC |
| Smart Scanning Mode | Yes |
| HD Mode | To be released in Artec Studio 19 |
| Ability to capture texture | Scanner native & phototexture |
| Colors | 24 bpp |
| Data acquisition speed | 1 min points/s |
| 3D light source | RGB LED |
| 2D light source | RGB LED |
| Interface | USB 3.0 |
| Dimensions | 396 x 405 x 337 mm |
| Weight | 12 kg |
| Supported OS | Windows 10 (x64), Windows 11 |
| Recommended computer requirements | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ |
| Minimum computer requirements | Intel Core i5, i7, or i9, 32GB RAM, GPU with 2 GB VRAM |
| Warranty | 2 years |
| 3D mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, )(_T |
| Measurements | CSV, DXF, XML |
